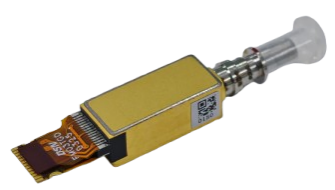

100G-LR4 Differential TOSA
The 100G-LR4 Differential TOSA is 4x28GBd LAN Wavelength Division Multiplexer (LWDM) differential EML TOSA that operate within the O-Band spectrum, specifically at wavelengths of 1295nm, 1300nm, 1304nm, and 1309nm.
Features
- Suitable for dual speed transmission (4x25G or 4x28G)
- Four LWDM EMLs with AC Load
- LWDM TFF MUX integrated
- One TEC and one Thermistor for four EMLs
- Compliant to Telcordia-GR468
- Operating temperature range: -5°C to 75°C
- RoHS compliant
Applications
- 100G-LR4
Product Details
|
Parameter |
Value |
|
|
Data Rate |
25/28GBaud |
|
|
Laser Operating Temperature |
55°C (typ.) |
|
|
Operating Current |
70~120mA |
|
|
Wavelengths(LWDM) |
1295/1300/1304/1309nm |
Mechanical and Electrical Interface
For more information, please contact us!
